Name: AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber
Brand: Airwolf Automation
SKU: AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2
Price: 7.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Κυλίνδρων με πεπιεσμένο αέρα

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

Λεπτομέρειες:

Τόπος καταγωγής:	Ταϊβάν, Κίνα, Κίνα
Μάρκα:	CJAC, AIRWOLF or OEM
Αριθμό μοντέλου:	AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 Τεμάχιο
Τιμή:	4-11USD
Συσκευασία λεπτομέρειες:	Κουτιά, χαρτοκιβώτια, παλέτες, πλαστικές σακούλες
Χρόνος παράδοσης:	1-7 εργάσιμες ημέρες
Όροι πληρωμής:	T/T, Western Union, PAYPAL
Δυνατότητα προσφοράς:	1000 υπολογιστές την εβδομάδα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Κώδικας στοιχείων:	AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2	Υλικό εξωτερικών σωλήνων:	AISI1215 και STKM11A οξειδωμένη μαύρη, επιμετάλλωση νικελίου
Υλικό ράβδων εμβόλων:	σκληρή θεραπεία επιμετάλλωσης χρωμίου	Εύρος θερμοκρασίας εργασίας:	-10~+80℃
Λειτουργία:	Προστασία από επιπτώσεις, απορρόφηση σοκ	Φάσμα ταχύτητας:	1.0 ~ 2.5m/s
Επισημαίνω:	CJAC AC Series shock absorber , Pneumatic air cylinder shock absorber , AC Series shock absorber with warranty

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

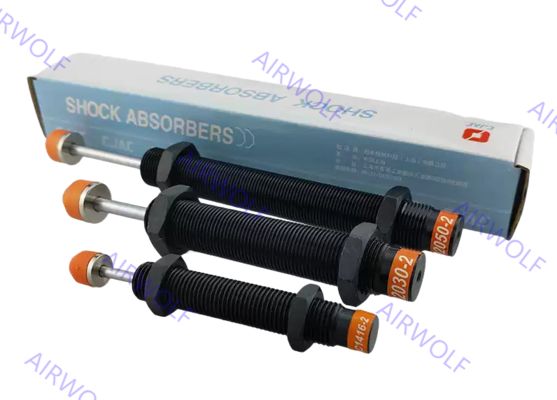

The CJAC AC Series is a line of industrial shock absorbers, or oil pressure buffers, engineered to provide automatic compensation for kinetic energy in machinery. Designed for fixed constructions, these devices utilize specialized oil holes and alignment to maintain linear deceleration across a wide range of applications, from high-speed light loads to low-speed heavy loads, without requiring manual adjustment. Key technical specifications include an operating temperature range of -10°C to +80°C and an effective impact speed range of 0.1 m/s to 5.0 m/s, depending on the model. They are constructed with durable materials such as an AISI1215 outer pipe with nitriding treatment for rust resistance and a hard chromium-plated piston rod for longevity, making them suitable for harsh industrial environments.

Order Code:

Item Code	A(mm)	B(mm)	D(mm)	F(mm)
AC2530-2	160	111	8	101
AC2540-2	214	127	8	117
AC2550-2	239.5	170.5	8	100
AC2580-2	336	237	8	100
AC3660-2	248	162	10	134

AC2530-2, AC2540-2, AC2550-2, AC2580-2, AC3660-2 CJAC AC Series Shock Absorber

Specifications:

Model	AC2530-2	AC2540-2	AC2550-2	AC2580-2	AC3660-2
Stroke(mm)	30	40	50	80	60
Maximum absorbed energy (Nm(Et))	92	120	135	150	250
Absorbed energy per hour (Nm(Etc))	62100	75000	90000	120000	120000
Maximum effective weight (Kg(Me))	900	1200	900	600	24000
Highest impact speed (m/s(v))	2.0	2.5	2.5	2.5	1.0
Thread	M25x1.5	M25x1.5 *M25x2.0	M25x1.5 *M25x2.0	M25x1.5 *M25x2.0	M36x1.5

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
